正三棱镜

正三棱镜也称"等边棱镜"、"色散棱镜".通常用于从复色光中分离出单色光谱,通常光束先会经过准直后在入射到三棱镜,在透镜或凹反射镜的焦平面上会得到光谱的序列。


技术规格:

材料..........................H-K9L优,紫外熔石英,SF11

尺寸公差.......................................+0.0, -0.2mm

有效孔径.................................................>80%

光洁度......................................................60-40

面形.............................................λ/[email protected]

角精度..........................................................±3'

倒角.............................................<0.25mm×45°

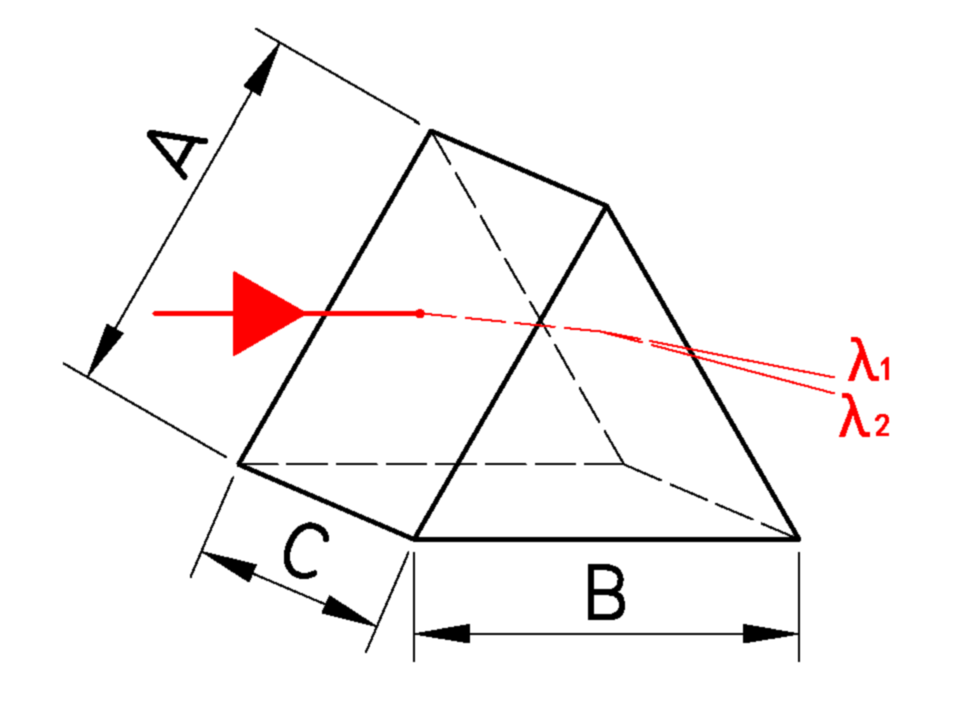

P/NABCMaterial
210015.005.005.00BK7
2100210.0010.0010.00BK7
2100315.0015.0015.00BK7
2100420.0020.0020.00BK7
2100525.0025.0025.00BK7
210065.005.005.00UVFS
2100710.0010.0010.00UVFS
2100815.0015.0015.00UVFS
2100920.0020.0020.00UVFS
2101025.0025.0025.00UVFS
210115.005.005.00SF11
2101210.0010.0010.00SF11
2101315.0015.0015.00SF11
2101420.0020.0020.00SF11
2101525.0025.0025.00SF11
●尺寸单位:毫米
●其他规格和镀膜要求请联系EastOptics销售获得。
