Dispersing Prism
Dispersing Prisms are used to separate a white light beam into its component colors.Gernerally,the light is first collimated and dispersed by the prism.A spectrum id then formed at the focal plane of a lens or curved mirror.
In laser work,dispersing prisms are used to separate two wavelengths following the same beam path.Typically,the dispersed beams are permitted to travel far enough so the beams separate spatially.
In laser work,dispersing prisms are used to separate two wavelengths following the same beam path.Typically,the dispersed beams are permitted to travel far enough so the beams separate spatially.
Specifications:
Material..................BK7 glass,UV Fused Silica,SF11 glass
Dimension Tolerance..............................+0.0, -0.2mm
Clear Aperture................................................>80%
Surface Quality...............................................60-40
Flatness.............................................λ/[email protected]
Angle Tolerance..................................................±3'
Bevel...............................................<0.25mm×45°

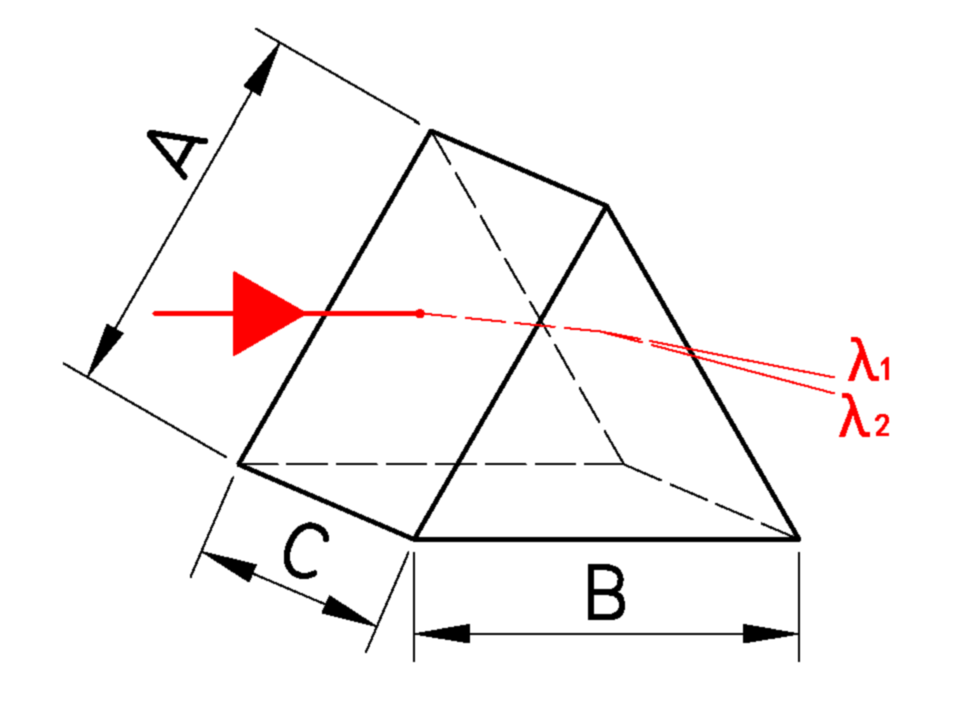

| P/N | A | B | C | Material |
|---|---|---|---|---|
| 21001 | 5.00 | 5.00 | 5.00 | BK7 |
| 21002 | 10.00 | 10.00 | 10.00 | BK7 |
| 21003 | 15.00 | 15.00 | 15.00 | BK7 |
| 21004 | 20.00 | 20.00 | 20.00 | BK7 |
| 21005 | 25.00 | 25.00 | 25.00 | BK7 |
| 21006 | 5.00 | 5.00 | 5.00 | UVFS |
| 21007 | 10.00 | 10.00 | 10.00 | UVFS |
| 21008 | 15.00 | 15.00 | 15.00 | UVFS |
| 21009 | 20.00 | 20.00 | 20.00 | UVFS |
| 21010 | 25.00 | 25.00 | 25.00 | UVFS |
| 21011 | 5.00 | 5.00 | 5.00 | SF11 |
| 21012 | 10.00 | 10.00 | 10.00 | SF11 |
| 21013 | 15.00 | 15.00 | 15.00 | SF11 |
| 21014 | 20.00 | 20.00 | 20.00 | SF11 |
| 21015 | 25.00 | 25.00 | 25.00 | SF11 |
●Unit:mm
●Other sizes and coatings are available upon request.
●Other sizes and coatings are available upon request.
