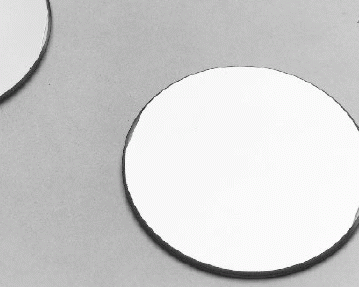

Protected Gold Mirror
Specifications:
Material................................................................See table
Diameter..........................................................+0/-0.10mm
Thickness.............................................................±0.20mm
Clear Aperture..........................................90% of diameter
Parallelism...................................................<3 arc minutes
Surface Quality.................................60–40 scratch and dig
Coating............................................Protected or bare gold
....................................Ravg≥99% [700nm–20mm(bare)]
............................Ravg≥98% [650 nm–16 mm (protected)]
Material................................................................See table
Diameter..........................................................+0/-0.10mm
Thickness.............................................................±0.20mm
Clear Aperture..........................................90% of diameter
Parallelism...................................................<3 arc minutes
Surface Quality.................................60–40 scratch and dig
Coating............................................Protected or bare gold
....................................Ravg≥99% [700nm–20mm(bare)]
............................Ravg≥98% [650 nm–16 mm (protected)]
| P/N | Size | Flatness | Substrate |
|---|---|---|---|
| 50501 | Φ12.7×6 | λ/4 | BK7 |
| 50502 | Φ25.4×6 | λ/4 | BK7 |
| 50503 | Φ12.7×6 | λ/10 | Fused Silica |
| 50504 | Φ25.4×6 | λ/10 | Fused Silica |
●Unit:mm
●Other sizes and coatings are available upon request.
