Rhomboid prism can displace a laser beam without change the image orientation, the input beam is totally internal reflected by two 45° faces and goes out from the output face. Then, a lateral displacement is produced. Higher transmission rate can be achieved by anti-reflective coating on the input and output faces.Rhomboid prism is always used in stereoscopic system and periscope system.
Specifications:
Material................................BK7 grade A optical glass
Dimension Tolerance............................+0.0, -0.1mm
Clear Aperture..............................................> 90%
Surface Quality................................................60-40
Flatness.............................................λ/8 @632.8nm
Parallelism........................................< 5 arc seconds
Angle Tolerance.................................< 1 arc minute
Bevel.................................................<0.5mm x 45°

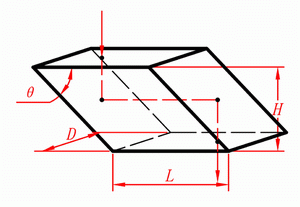

| P/N | H | L | D | θ |
|---|---|---|---|---|
| 20801 | 10.00 | 10.00 | 10.00 | 45° |
| 20802 | 15.00 | 15.00 | 15.00 | 45° |
●Other sizes and coatings are available upon request.
