Air-Spaced Zero Order Waveplate

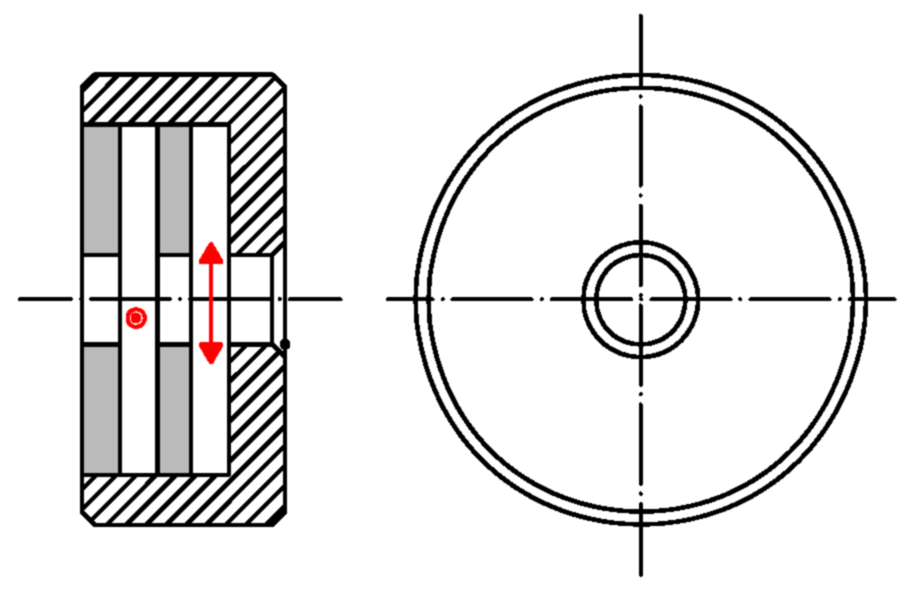

Air spaced zero order waveplate is constructed by two quartz plates installed in a mount, to form a air gap between the two quartz plates. The difference in thickness between the two plates determines the retardance. Zero order waveplates offer a substantially lower dependence on temperature and wavelength change than multi-order waveplates.

Specifications:
Material...........................................................Crystal Quartz
Dimension Tolerance.........................................+0.0/-0.2mm
Wavefront Distortion........................................λ/8@632.8nm
Retardation Tolerance..................................................λ/300
Parallelism(single plate)......................................<1 arc second
Surface Quality.......................................20/10 scratch and dig
Clear Aperture............................................>90% central area
Coating...........................AR coating on both sides,R<0.25%@λ
Damage Threshold.......................................5J/cm2,10ns,10Hz

P/NTypeΦTCAλ
70501λ/425.45.812.0532nm
70502λ/425.45.815.0532nm
70503λ/225.45.812.0632.8nm
70504λ/225.45.815.0532nm
●Unit:mm
●Other sizes and coatings are available upon request.
