Brewster Window

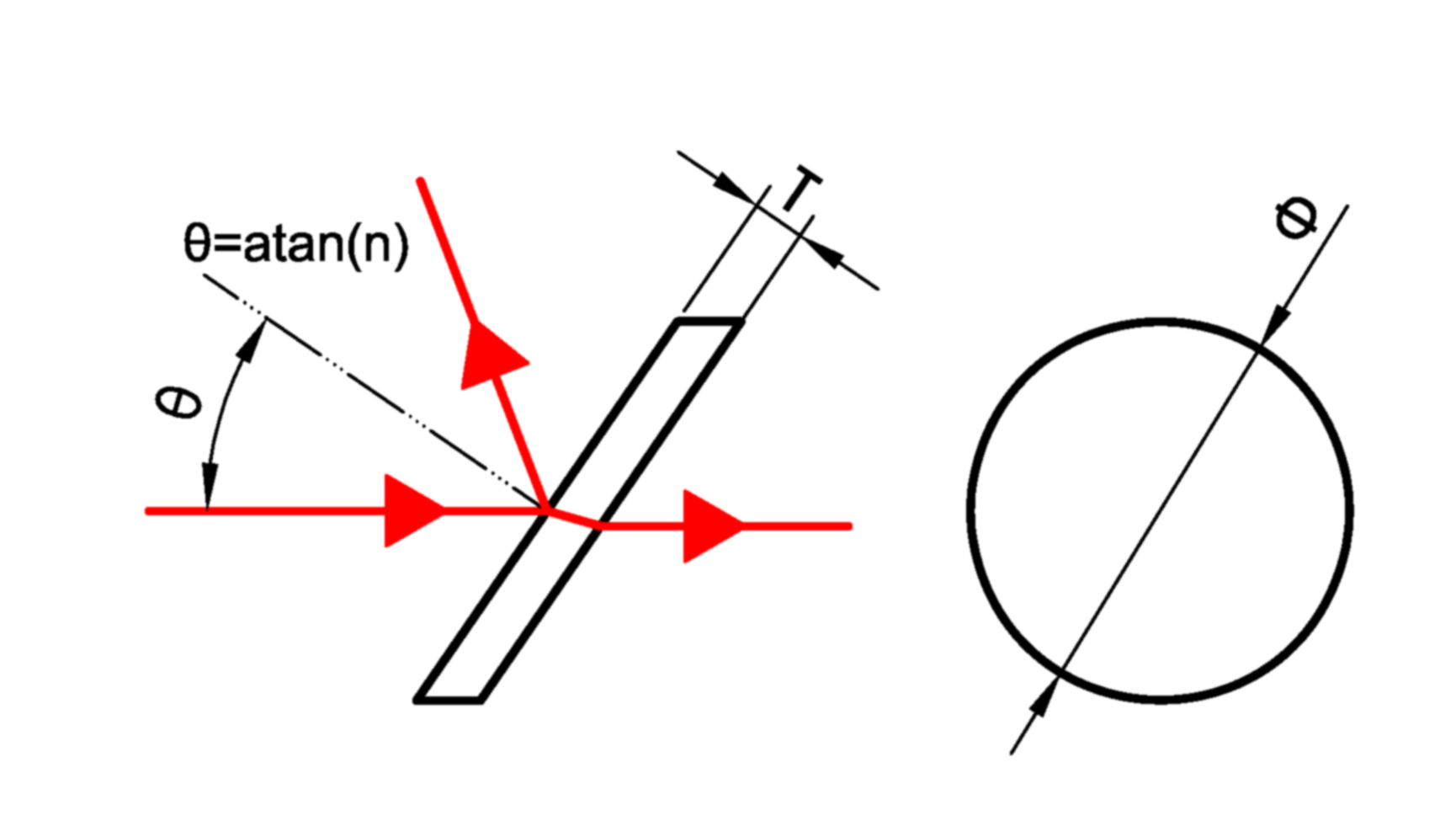

Brewster Windows are designed to present a circular profile when oriented at Brewster’s angle (55.57°). Brewster Windows feature laser grade surface quality and parallelism, in addition to limiting transmitted wavefront distortion to λ/10. When used at 55.57°, these windows minimize the loss of P-polarized light, ideal for use within laser cavities and for producing linearly polarized light.



Reduce Loss of P-Polarized Light

Circular Profile When Oriented at 55.57°

Great for Use in Laser Cavities

Material.............BK7 Grade A,UV Grade Fused Silica

Dimension Tolerance........................+0.0/-0.2mm

Thickness Tolerance...............................±0.2mm

Clear Aperture..........................................>90%

Parallelism..................................<10 arc seconds

Surface Quality..................................20/10(S/D)

Wavefront Distortion......................<λ/10@633nm

Chamfer Protected..........................<0.5mm×45°

Coating..............................................No Coating

P/NΦTMaterial
719016.352BK7
7190212.72BK7
7190315.03BK7
7190420.03BK7
7190525.44BK7
719066.352UVFS
7190712.72UVFS
7190815.03UVFS
7190920.03UVFS
7191025.44UVFS
●Unit:mm
●Other sizes and coatings are available upon request.
