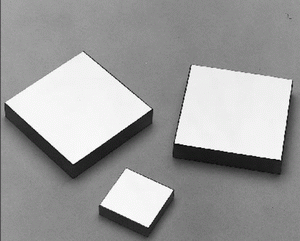

Protected Aluminum Mirror
Material......................................................................BK7,Fused Silica
Dimension Tolerance.............................................................±0.20 mm
Thickness Tolerance..............................................................±0.20 mm
Clear Aperture..............................................................................>90%
Flatness........................................................................see table below
Parallelism.....................................................................<3 arc minutes
Surface Quality..........................................................................60–40
Coating..............Protected aluminum on S1,Ravg>87%@400–800nm
Dimension Tolerance.............................................................±0.20 mm
Thickness Tolerance..............................................................±0.20 mm
Clear Aperture..............................................................................>90%
Flatness........................................................................see table below
Parallelism.....................................................................<3 arc minutes
Surface Quality..........................................................................60–40
Coating..............Protected aluminum on S1,Ravg>87%@400–800nm
| P/N | Size | Flatness | Substrate |
|---|---|---|---|
| 50201 | Φ12.7×5 | λ/4 | BK7 |
| 50202 | Φ25.4×5 | λ/4 | BK7 |
| 50203 | Φ12.7×6 | λ/10 | Fused Silica |
| 50204 | Φ25.4×6 | λ/10 | Fused Silica |
| 50205 | Φ12.7×6 | λ/20 | Fused Silica |
| 50206 | Φ25.4×6 | λ/20 | Fused Silica |
●Unit:mm
●Other sizes and coatings are available upon request.
●Other sizes and coatings are available upon request.
