Pellin Broca Prism

Pellin Broca Prism is used to separate the harmonics of laser beam, it can be also used to compensate for group velocity dispersion. Due to the beam enters and exits the prism at Brewster's angle, the power loss is extremely low for P-polarized beam. The angle between input and output beam is close to 90°.

Specifications:

Material..............................BK7, UV Fused Silica

Design Wavelength...........................546.1nm

Dimension Tolerance...........................±0.2mm

Clear Aperture......................................>90%

Angle Tolerance........................<3 arc minutes

Surface Quality.................60-40 scratch and dig

Flatness..................................<λ/[email protected]

Chamfer......................................<0.5mm×45°

Coating...........................................No coating

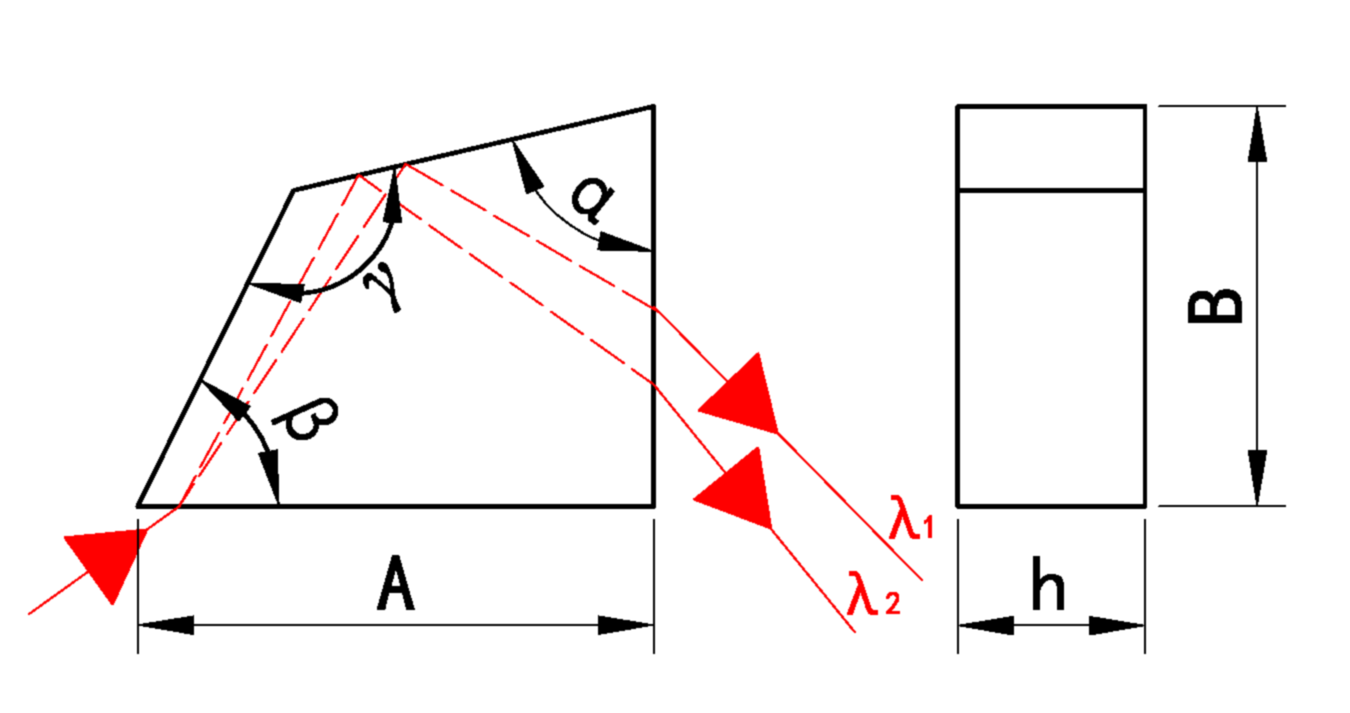

P/N	A	B	h	α	β	γ	Material	λ
21201	20.0	11.0	6.4	78.50°	60°	(131.50°)	BK7	380nm~2100nm
21202	40.0	22.0	12.8	78.50°	60°	(131.50°)	BK7	380nm~2100nm
21203	20.0	11.0	6.4	78.50°	60°	(131.50°)	UVFS	180nm~2100nm
21204	40.0	22.0	12.8	78.50°	60°	(131.50°)	UVFS	180nm~2100nm

●Unit:mm
●Other sizes and coatings are available upon request.
