Plano-Convex Cylindrical Lens
Plano-convex cylindrical lenses are ideal for applications requiring magnification in one dimension. While spherical lenses act symmetrically in two dimensions on an incident ray, cylindrical lenses act in the same manner but only in one dimension. A typical application is to use a pair of cylindrical lenses to provide anamorphic shaping of a beam. A pair of positive cylindrical lenses can be used to collimate and circularize the output of a laser diode. Another application possibility would be to use a single lens to focus a diverging beam onto a detector array. To minimize the introduction of spherical aberrations, collimated light should be incident on the curved surface when focusing it to a line, and light from a line source should be incident on the plano surface when collimating.
Specification:
Material.........................................BK7,UVFS
Dimension Tolerance.........................±0.1mm
Thickness Tolerance..........................±0.2mm
Design Wavelength.........................587.6nm
Centration.................................<3 arc min.
Clear Aperture..................................>90%
Surface Quality..................................60-40
Paraxial Focal Length............................f±2%
Coating......................................No Coating

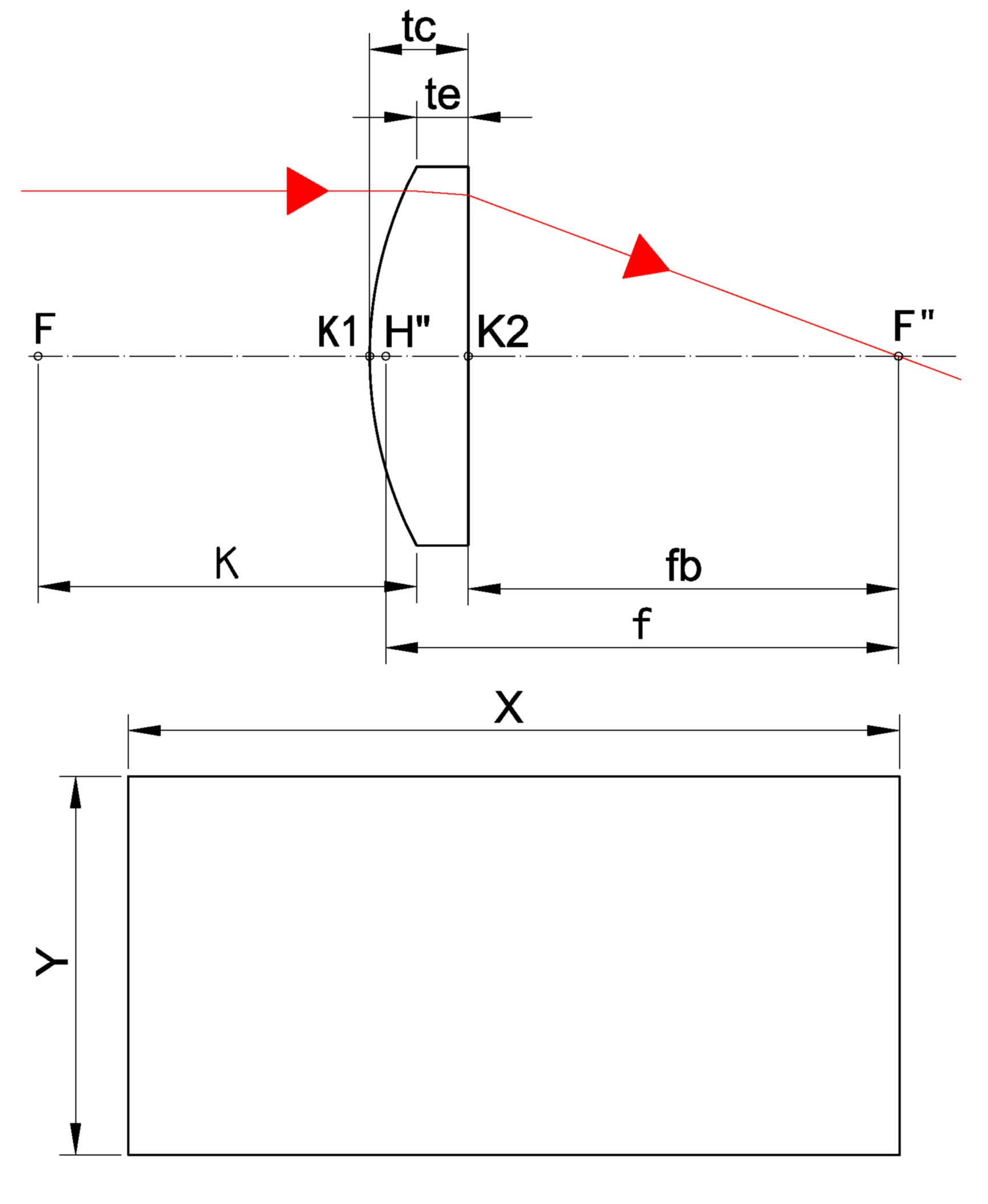

P/N | f | X | Y | tc | te | K2H'' | fb | K | Material |
---|---|---|---|---|---|---|---|---|---|
40101 | 4 | 12.5 | 3.2 | 1.8 | 1 | 41.2 | 2.8 | 4.8 | BK7 |
40102 | 8 | 12.5 | 7 | 3.8 | 1.9 | 42.5 | 5.5 | 9.9 | BK7 |
40103 | 10 | 12.5 | 9 | 3.8 | 1.2 | 42.5 | 7.5 | 12.6 | BK7 |
40104 | 6.35 | 25 | 6 | 2.95 | 1 | 42 | 4.4 | 8.3 | BK7 |
40105 | 12.7 | 25 | 11 | 4 | 1 | 42.6 | 10.1 | 15.7 | BK7 |
40106 | 19 | 25 | 16 | 5.1 | 1 | 43.4 | 15.6 | 23.1 | BK7 |
40107 | 22.2 | 20 | 12.5 | 5.75 | 3.9 | 43.8 | 18.4 | 24.1 | BK7 |
40108 | 25.4 | 60 | 22 | 7 | 1 | 44.6 | 20.8 | 31.4 | BK7 |
40109 | 38.1 | 60 | 26 | 6.9 | 2 | 44.6 | 33.5 | 43 | BK7 |
40110 | 40 | 60 | 15 | 5.75 | 4.3 | 43.8 | 36.2 | 41.4 | BK7 |
40111 | 50 | 60 | 26 | 5.5 | 2 | 43.6 | 46.4 | 53.5 | BK7 |
40112 | 60 | 60 | 20 | 5.75 | 4.1 | 43.8 | 56.2 | 61.7 | BK7 |
40113 | 76.2 | 60 | 26 | 4.2 | 2 | 42.8 | 73.4 | 78.4 | BK7 |
40114 | 80 | 60 | 30 | 5.75 | 2.9 | 43.8 | 76.2 | 82.8 | BK7 |
40115 | 100 | 60 | 50 | 8.89 | 2.4 | 45.9 | 94.1 | 106.4 | BK7 |
40116 | 150 | 60 | 50 | 5.75 | 1.6 | 43.8 | 146.2 | 154.1 | BK7 |
40117 | 200 | 60 | 50 | 6.35 | 3.3 | 44.2 | 195.8 | 203.1 | BK7 |
40118 | 250 | 60 | 50 | 5.4 | 3 | 43.6 | 252.4 | 252.4 | BK7 |
40119 | 300 | 60 | 50 | 6 | 4 | 44 | 296 | 302 | BK7 |
40120 | 4 | 12.5 | 3.2 | 1.8 | 0.9 | 41.2 | 2.8 | 4.9 | UVFS |
40121 | 8 | 12.5 | 6.5 | 3.8 | 1.9 | 42.6 | 5.4 | 10 | UVFS |
40122 | 10 | 12.5 | 8 | 3.8 | 1.5 | 42.6 | 7.4 | 12.3 | UVFS |
40123 | 12.7 | 25 | 10 | 3.84 | 1 | 42.63 | 10 | 15.5 | UVFS |
40124 | 19 | 25 | 15 | 5.28 | 1 | 43.62 | 15.4 | 23.3 | UVFS |
40125 | 25 | 60 | 15 | 4.79 | 2 | 43.29 | 21.7 | 27.8 | UVFS |
40126 | 40 | 60 | 26 | 7.4 | 2 | 45.08 | 34.9 | 45.4 | UVFS |
40127 | 50 | 60 | 26 | 6.04 | 2 | 44.14 | 45.9 | 54 | UVFS |
40128 | 76.2 | 60 | 26 | 4.51 | 2 | 43.09 | 73.1 | 78.7 | UVFS |
40129 | 100 | 60 | 26 | 3.88 | 2 | 42.66 | 97.3 | 101.9 | UVFS |
40130 | 200 | 60 | 26 | 3.93 | 3 | 42.69 | 197.3 | 200 | UVFS |
40131 | 300 | 60 | 26 | 3.62 | 3 | 42.48 | 297.5 | 300.6 | UVFS |
●Unit:mm
●Other sizes and coatings are available upon request.
